Solid State Relay Module Pack of 2 Y3855
Solid State Relay Module Pack of 2 Y3855

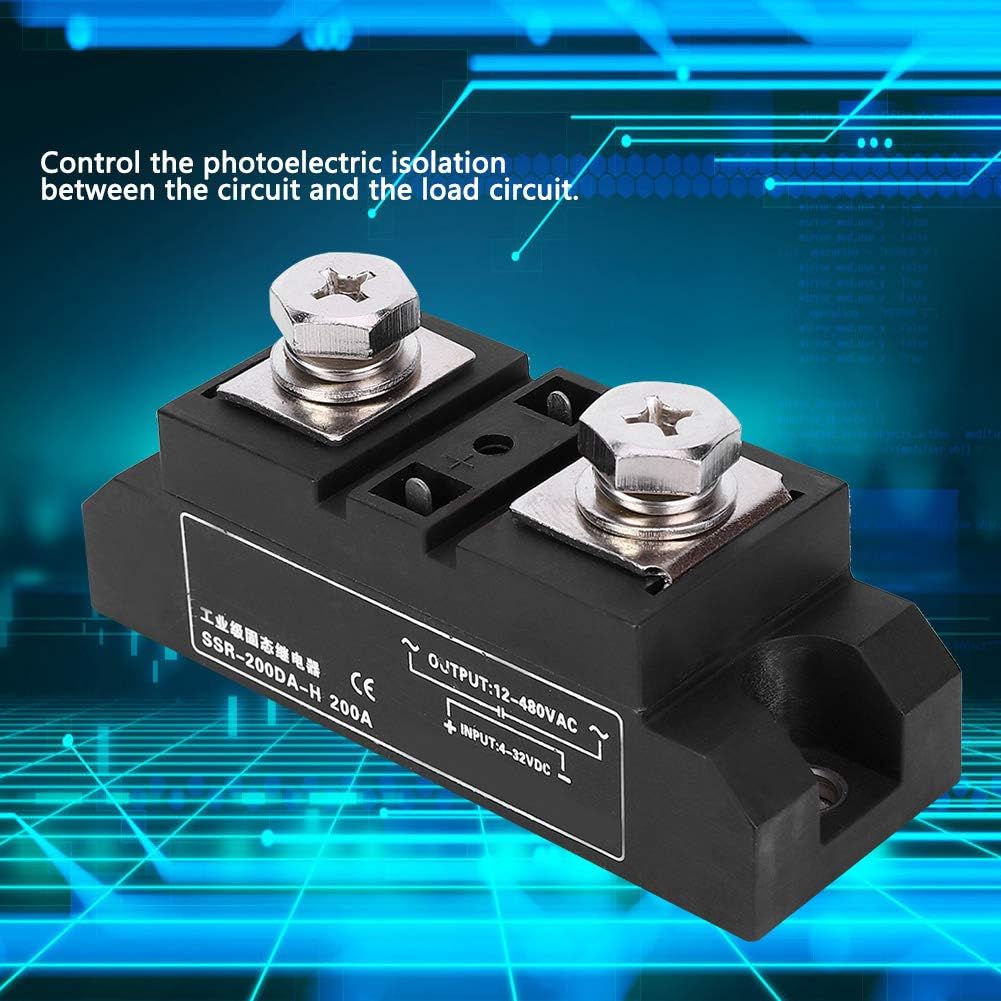

Industry Grade Material: Industrial-grade solid-state relays, which can control the photoelectric isolation between the circuit and the load circuit
Industry Grade Material: Industrial-grade solid-state relays, which can control the photoelectric isolation between the circuit and the load circuit
Automatice Design: Thyristor output, zeroing current shutdown, built-in resistance-capacitance absorption circuit

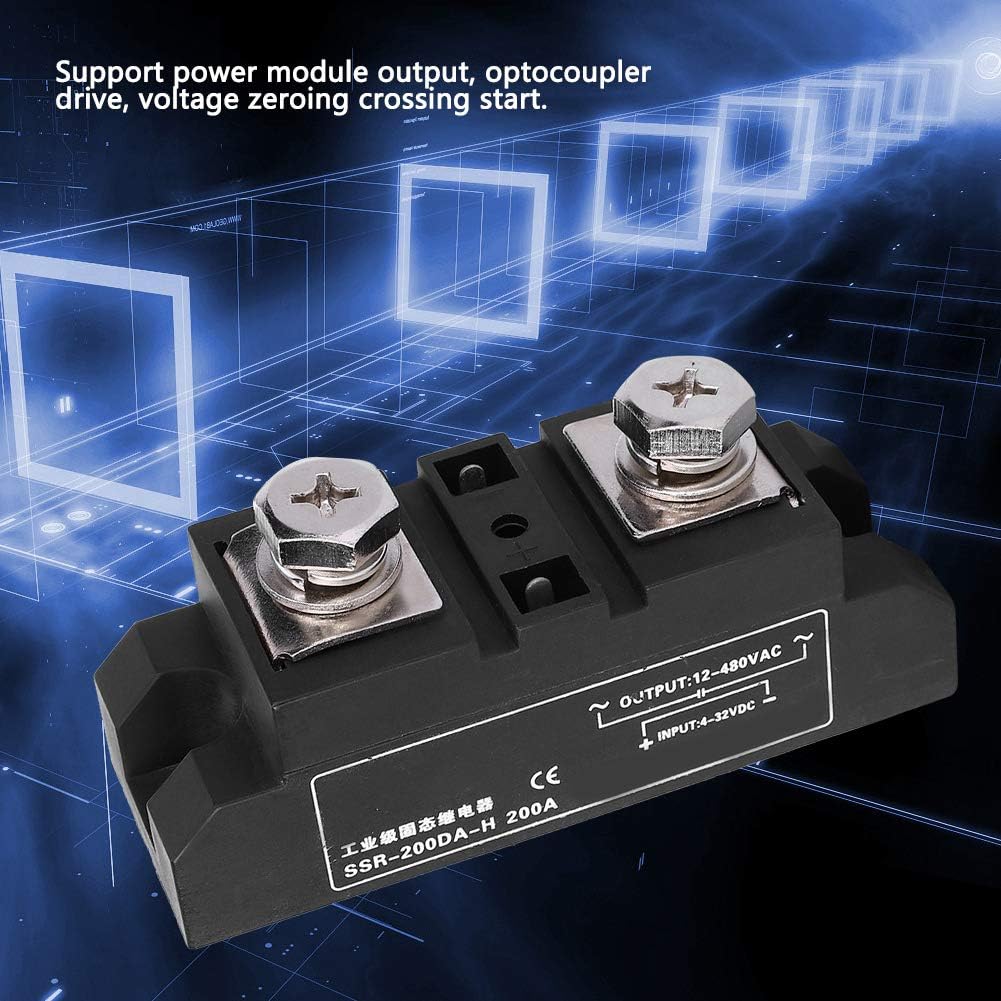

Multiple Functions: Support power module output, optocoupler drive, voltage zeroing crossing start
LED Indicator: The control signal is compatible with TTL logic, and the control state is indicated by light-emitting diodes
Offers Relibale Performance: Using flame-retardant engineering plastic shell, brass bottom plate, long service life
Feature:
1. Industrial-grade solid-state relays, which can control the photoelectric isolation between the circuit and the load circuit.
2. Thyristor output, zeroing current shutdown, built-in resistance-capacitance absorption circuit.
3. Support power module output, optocoupler drive, voltage zeroing crossing start.
4. The control signal is compatible with TTL logic, and the control state is indicated by light-emitting diodes.
5. Using flame-retardant engineering plastic shell, brass bottom plate, long service life.
6. Appropriate heat sinks are required when using, and forced air cooling can be added if necessary.
7. High-power relay, using epoxy resin potting (module), three-phase starting characteristics are consistent.
Specification:
Condition: 100% Brand New
Item Type: Solid State Relay
Model: SSR-200DA-H (DC Control AC)
Control Voltage: 4-32VDC
Control Current: ≥15MA
On-State Voltage Drop: ≤1.5V
Electrical Life: Longer Life
Rated Current: 200A
Load Voltage: 12-480VAC
Medium Pressure: 2000VAC
Off-State Leakage Current: ≤5MA
Turn-On Time: ≤10MS
Ambient Temperature: -30℃ - +70℃
Package List:

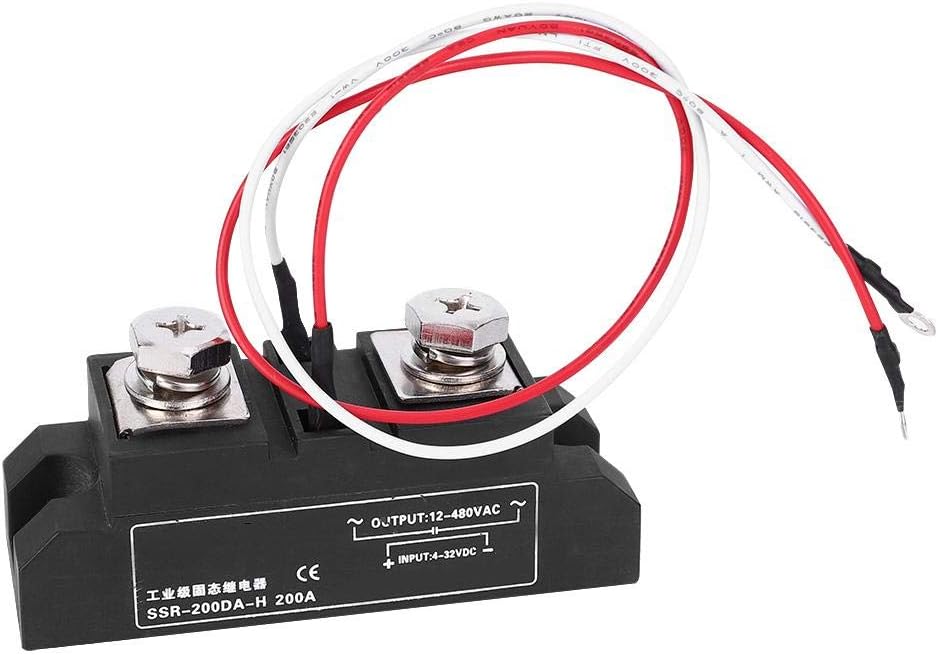

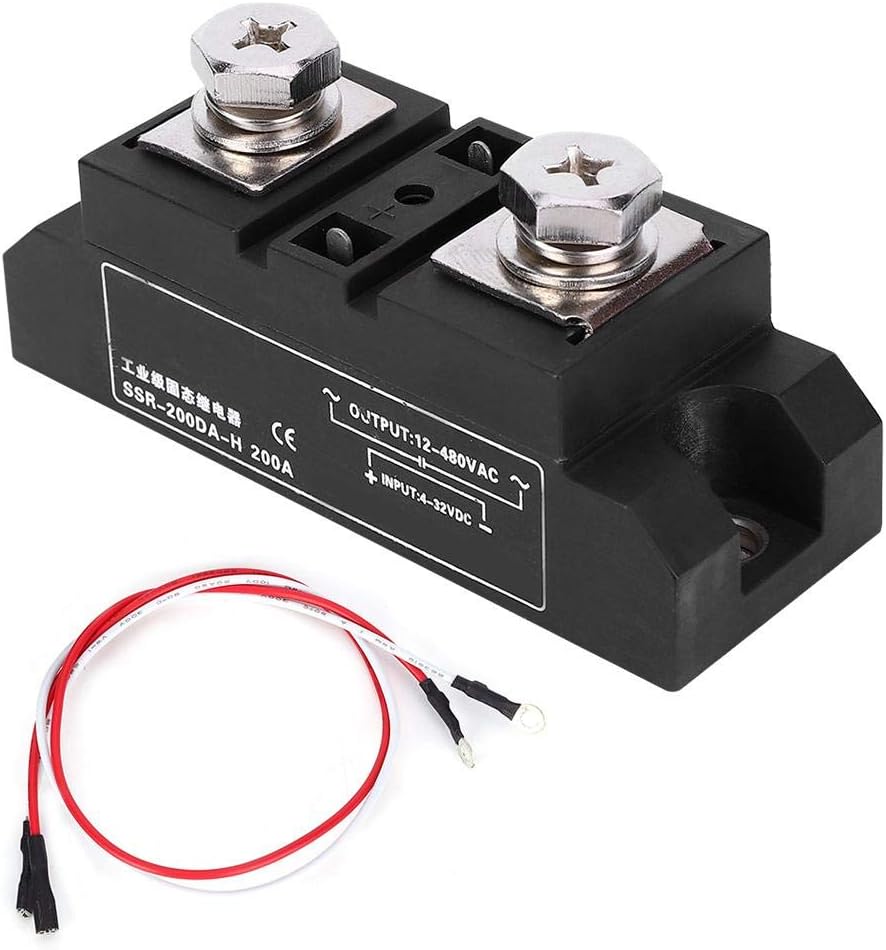

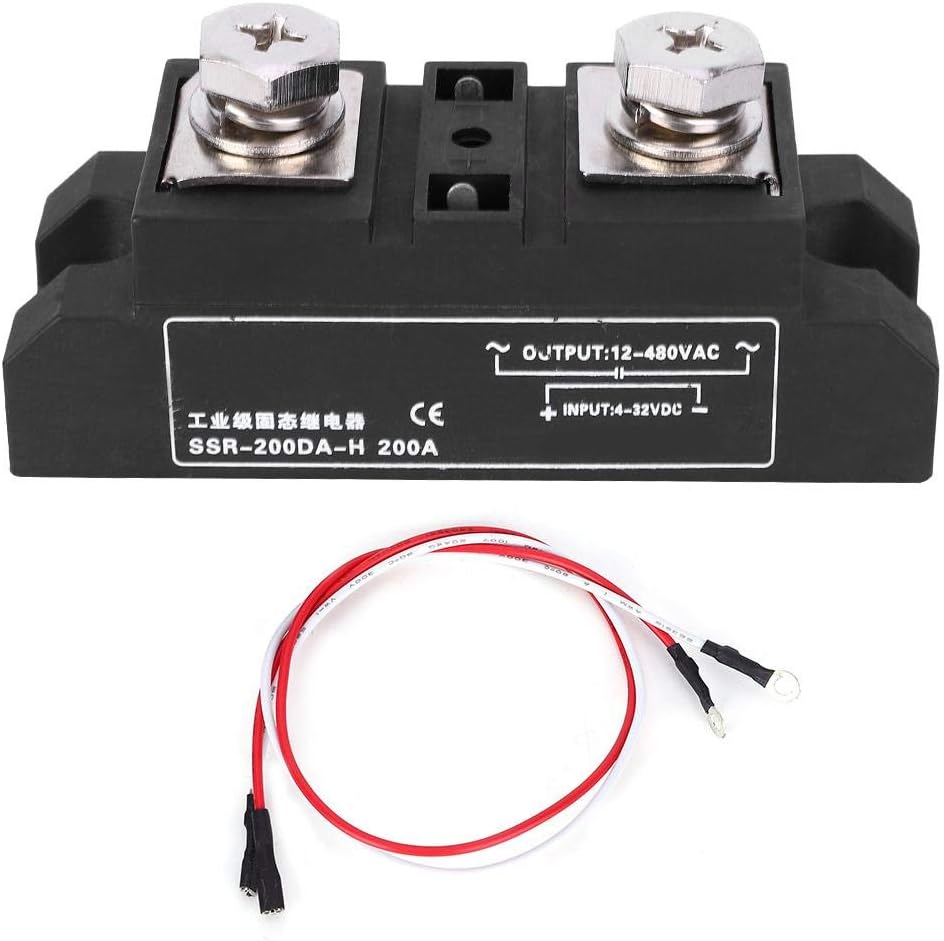

1 x Solid State Relay
2 x Cable
