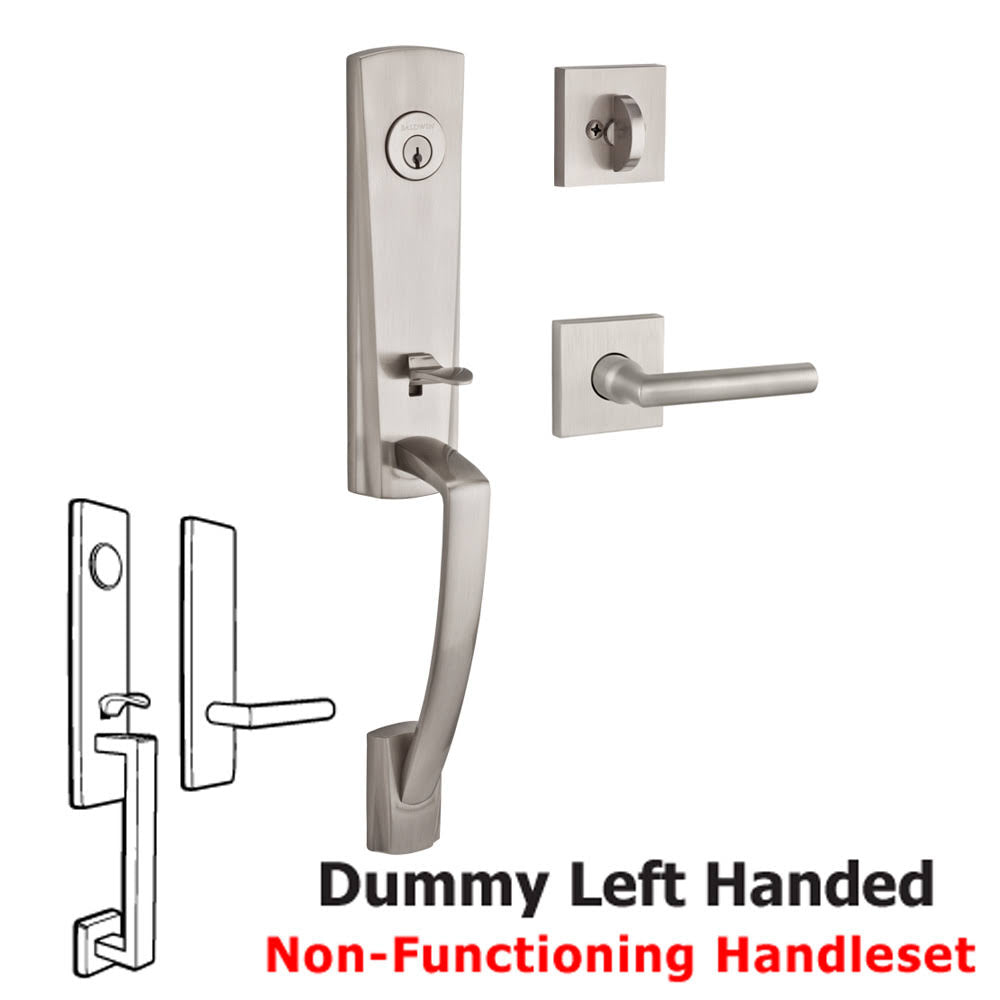

Miami Handleset with Left Handed Tube Lever and Contemporary Square Rose in Satin Nickel Z13616
Sale price
$29.50
Regular price $113.83
Skip to product information
Handing required only when ordering interior lever style. Rose style will determine interior deadbolt turnpiece style. Functions available: single cylinder, double cylinder, and full dummy. Single Cylinder Handleset: Latch Bolt operated by thumb-piece grip outside and knob/lever inside. Deadbolt operated by key outside and thumbturn inside. Double Cylinder Handleset: Latch Bolt operated by thumb-piece grip outside and knob/lever inside. Deadbolt operated by key outside and inside. Full Dummy Handleset: Thru-Bolt Mounted. No Latch. No Strike. Dummy handlesets use a single cylinder interior style with non-functioning turnpiece. Door Prep: 2-1/8 in. cross bore for both deadbolt and grip. 1 in. edge bore for both grip latch and deadbolt latch. 5-1/2 in. center-to-center tubular bore. Optional conversion kit available for 2 in. to 2-1/2 in. thick doors. Please specify -THK when ordering. Thin door option NOT available for this style. Adjustable backset as standard. 6-Way Adjustable Latch as standard. Includes collar, back plate, and round and square fronts. Dual Strike as standard. Includes both Square Corner and Round Corner Strikes. Grip offers 1/2 in. brass passage/privacy function bolt. Deadbolt features 1 in. throw brass bolt latch with hardened steel insert. Baldwin 5-pin C-Keyway as standard for keyed functions. Optional SmartKey Re-Key Technology available. Deadbolt exceeds ANSI/BHMA Grade 2 security. 20-minute certified UL option available. Exterior Handleset Overall Length: 18-1/16 in. Exterior Handle Upper Trim: 2-11/16 in. x 9-7/8 in. Exterior Projection: 3 in. Interior Lever Projection: 2-3/16 in. Interior Rosette: 2-9/16 in. x 2-9/16 in. Knob/Lever rotate at 55 - 60 degrees. Note: Interior and dummy functions have exposed screws. Sold as a complete set. Templates and Instructions included. Specify finish when ordering. Solid forged brass construction. Average Weight: 6.03 lbs MIAxTUB-CSR-FD-L-150-STD
Miami Handleset with Left Handed Tube Lever and Contemporary Square Rose in Satin Nickel Z13616
Sale price
$29.50
Regular price $113.83
Shipping calculated at checkout.
